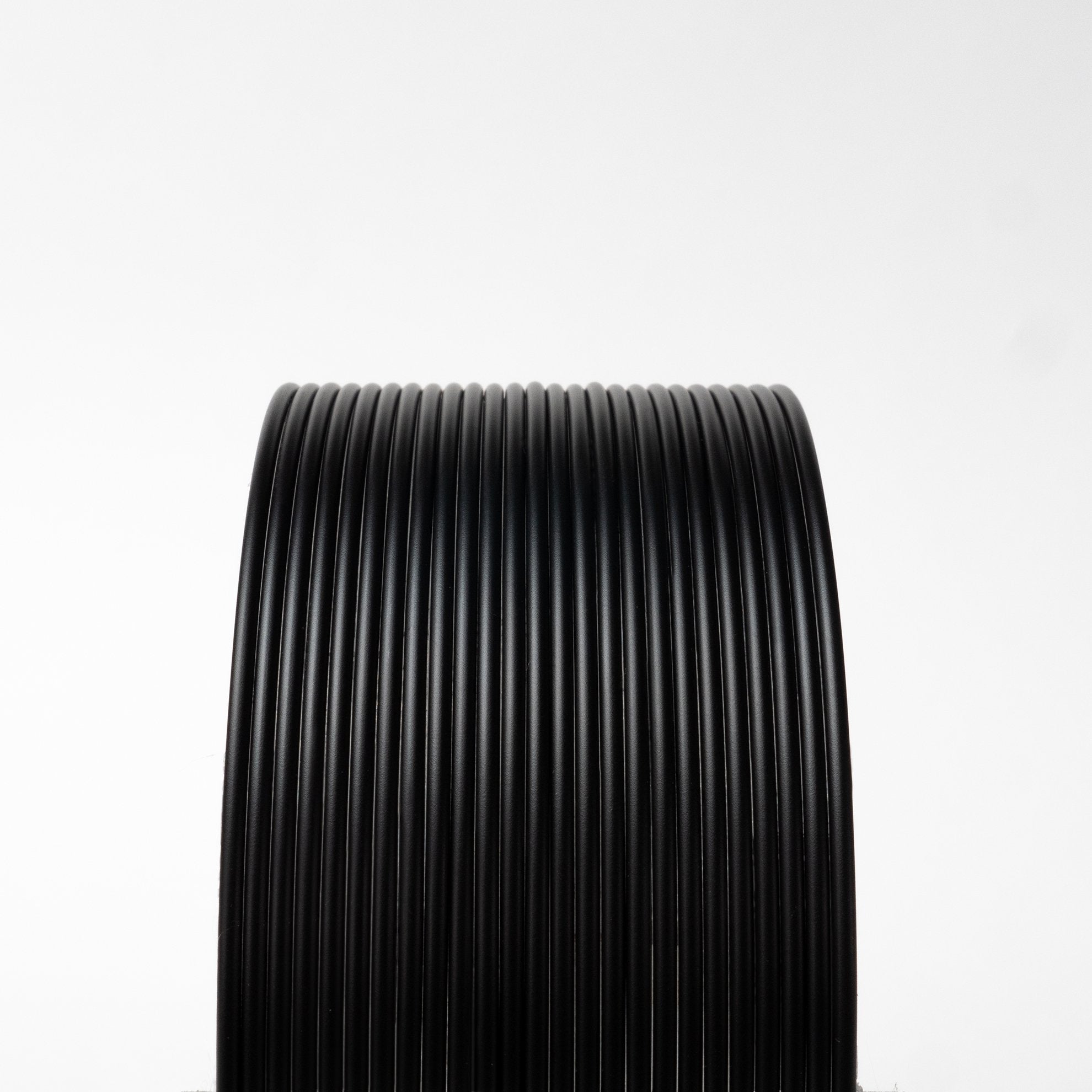

Electrically Conductive Composite PLA

Conductive 3D Printer Filament

$7.00 USD
CDP1170

Now with improved layer adhesion, increased resilience to break, higher melt flow, and, in general, greater consistency for more trouble-free, higher performance printing experience!

Have you ever wanted to create something with your 3D printer that includes electronics? Maybe an LED, touch sensor, or some other genius invention to solve the world’s problems? Then Protopasta Conductive PLA is the perfect material for you!

More product details

Technical Data Sheets

All of our products have material technical data sheets available for download here.

Safety Data Sheets

All of our products have safety data sheets available for download here.

Shipping

We provide a number of domestic shipping options within the United States via UPS, including free shipping on orders of $50 or more. We also provide international shipping via DHL Express.

Returns

At ProtoPlant's discretion, returns and replacements will be accepted within 90 days of purchase.  Please check the material label before opening your product.  Only sealed product can be returned. Shipping of items for exchange or refund is paid by the customer. More information about returns and replacements can be found in our terms and conditions.



Electrify prints for Simple Circuits & Touch-Sensitive Devices!

  • Available in 1.75 & 2.85 (3) mm diameters.
  • 125g are loose coils, 500g is on a 8" diameter spool, 2kg is on a 12" diameter spool.
  • Prints with standard PLA settings (or hotter) - no heated bed or special nozzle required
  • Usable on most PLA-compatible printers, such as Makerbot, FlashForge, Dremel, Ultimaker, Printrbot, and more!
  • Great for simple circuitry and interactive projects
  • Also experiment with ESD or 3D printed bearings!

How Conductive Is It?

  • Volume resistivity of molded resin (not 3D Printed): 15 ohm-cm
  • Volume resistivity of 3D printed parts along layers (x/y): 30 ohm-cm
  • Volume resistivity of 3D printed parts against layers (z): 115 ohm-cm
  • Resistance of a 10cm length of 1.75mm filament: 2-3kohm
  • Resistance of a 10cm length of 2.85mm filament: 800-1200ohm

Here is a link to some projects:

http://www.thingiverse.com/protognome/collections/conductive

And the original kickstarter:

http://www.kickstarter.com/projects/1375236253/electrically-conductive-pla-3d-printer-filament
